AETC60

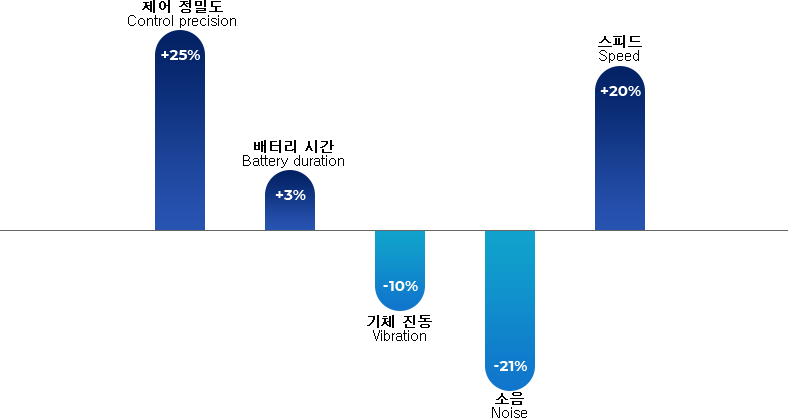

토크제어로 기존 제품과 다른 뛰어난 성능제공
Excellent torque control performance over conventional ESCs
Excellent torque control performance over conventional ESCs
기존 ESC(BLDC 제어)Conventional ESC(BLDC control)
- 방제용 드론 / Agricultural drone
- 배송용 드론 / Delivery Drone
- 기타 산업용 드론 / Other industrial drone
Persistent current 38A
Maximum instantaneous current 60A
FAIL SAFE
- Current protection- Short circuit protection
- Temperature protection
- Voltage protection
- Current shutoff at motor stall
- Current derating by battery level
제품 사양 및 특징 ｜ Parameters
-
Voltage input
6S ~ 12S Lipo
-
Weight
114g(without cable)
-
Size
126 x 49 x 33mm
-
Control type
FOC
-
ESC Type
모터 일체형｜Motor mounting type
(Compatiable with different types of motors)
-
MCU
STM32F730
-
ESC Firmware
SomethingAETC_ver1.0(Own development)
-
Throttle range
1,000 ~ 2,000㎲
-
Temperature
-20 ~ 60℃
-
출시 시기
Launching expected2025년 하반기
By the second half of 2025
